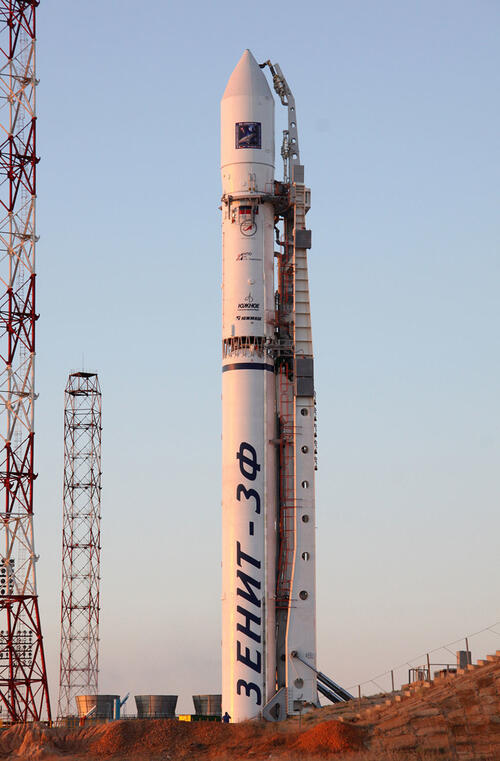

Zenit 3F
| Status | Retired |
|---|---|
| Rocket family | Zenit |
| Country | Russia |
| Manufacturer | Yuzhmash, NPO Lavochkin |
| Number of orbital launches | 4 |
| First launch | 2011-01-20 |
| Last launch | 2017-12-26 |
Consisted of a Zenit-2SB (Zenit-2M) core vehicle, with a Fregat-SB upper stage.
Launches by year:
Launches:
| Launch date | Launch site | Rocket / Variant | Payload | Notes | Status |
|---|---|---|---|---|---|
| 2017-12-26 | Baikonur | Zenit 3F | Angosat 1 | success | |
| 2015-12-11 | Baikonur | Zenit 3F | Elektro-L 2 | success | |
| 2011-07-18 | Baikonur | Zenit 3F | Spektr-R | success | |
| 2011-01-20 | Baikonur | Zenit 3F | Elektro-L 1 | success | |
Variants:
(This section is under construction)Zenit 3F (Zenit-3SLBF)
| First launch | 2011-01-20 |
|---|---|
| Stages | 3 |
| Upper stage | Fregat-SB |
| Mass | 460 t |
| Height | 57.4 m |
Payload capacity:
| GTO | 4200 kg |
|---|
